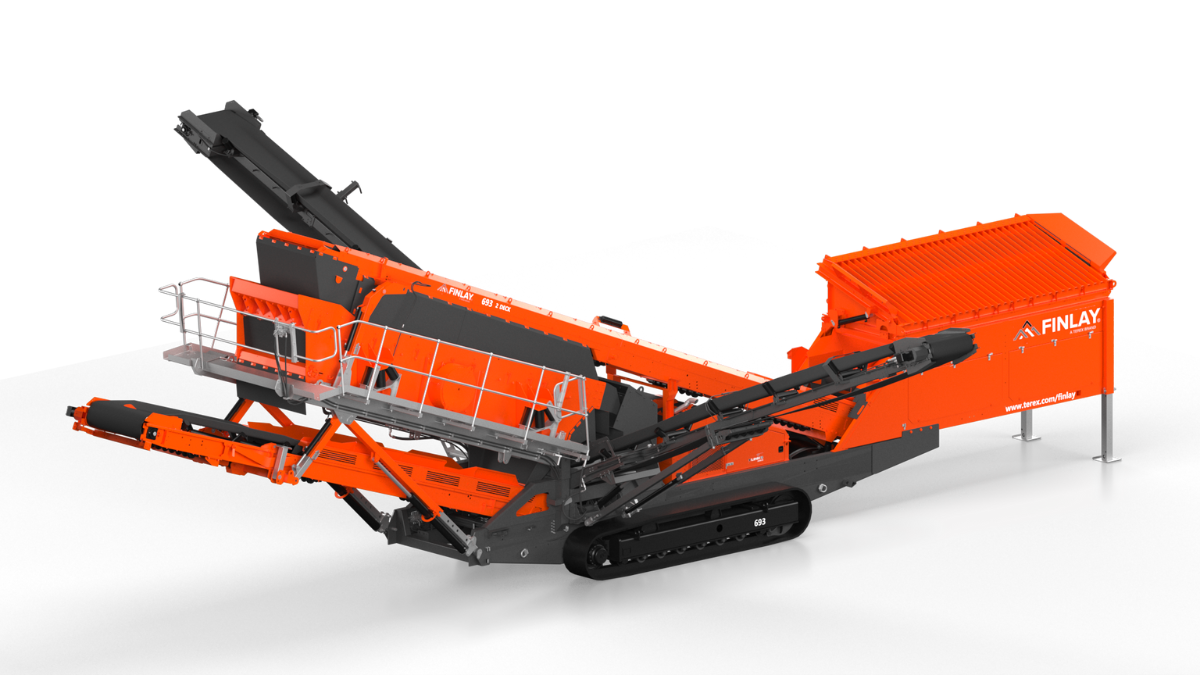

Finlay 693 Supertrak
(2 Deck)
Inclined Screen
Backed with
Aftermarket
Support
lorem ipsum dolor sit amet consectetur adipiscing elit nulla autem cupiditate ut veniam id iusto irure assumenda do placeat consequat nam illum similique nihil rerum ea elit qui commodo duis ipsum aute id anim dolore eligendi ut placeat et vel dolor pariatur ut consequat et voluptas provident libero labore in aliquip at ut sed iusto illum ut qui sed omnis do dolorem id sit irure eum officia sint ex harum illum id dolorem omnis labore occaecat commodo laborum in est ut soluta quidem non est expedita quod est ea in qui nisi qui consequatur aute quibusdam imperdiet excepturi elit dolorem
Technical Specifications
HOPPER/FEEDER
Hopper Capacity: 6.9m³ (9yd³)
Feed height: 2.65m (8’ 8”)
Feed in width: 4.1m (13’ 6”) (grid wing plates)
Grid aperture: 100mm (4”)
Drive: variable & high torque w/g. box
Belt feeder belt width: 1.2m (48”)
Belt Spec: Plain EP500/3.5+1.5
Speed: variable, 0 - 16 mpm (0 - 53’ per min)
Wide mouth opening
SCREEN BOX
Top deck: 6.1m x 1.53m (20’ x 5’ )
Bottom deck:5.55m x 1.53m (18’ x 5’)
Wedge side tensions top deck mesh
End tensioned bottom deck
Drive: Hydraulic heavy duty 2-Bearing
Manual Folding Catwalks
Screen Angle: 20° - 30°, hydraulic adjust
Screen stroke standard: 7mm (9/32”)
Screen speed: 1050 rpm
Abrasion resistant material impact plate
Spreader plate
Galvanised access catwalks on both sides and top end of screen
Total screening area: 18m² (190ft²)
Main Conveyor
Drive: Hydraulic drive via high torque 630cc motor
Belt width: 1050m (48”)
Belt spec: EP400 3 Ply 3+1.5
Hydraulic discharge height adjustment
Belt Speed: 92 mpm (302’ per min)
Steel skirted full length of conveyor
Oversize Conveyor
Drive: Hydraulic variable speed drive via high torque 400cc motor
Belt width: 800mm (32”)
Belt spec: Chevron EP315/3+1.5 (15mm Rib)
Working Angle: 22°
Speed: Variable speed, 0 - 90 mpm (0-295’ per min)
Hydraulic Folding
Discharge Height: 5.1m (16’ 9”)
Stockpile capacity: 228m³ (298yd³)
Fines Conveyor
Drive: Hydraulic variable speed drive via high torque 800cc motor
Belt width: 1.2m (48”)
Belt spec: Plain, EP400 / 3 Ply 3+1.5
Working Angle: Variable 28° (Max)
Rosta scraper on head drum
Speed: 125mpm (410’ per min)
Standard Discharge Height: 4.41m (14’ 6”)
Stockpile capacity: 127.5m³ (167yd³)
Mid Grade Conveyor
Drive: Hydraulic variable speed drive via high torque 400cc motor
Belt width: 800mm (32”)
Belt spec: Chevron EP315/3+1.5 (15mm Rib)
Working Angle: 24°
Speed: Variable speed, 0 - 90 mpm (0-295’ per min)
Hydraulic Folding
Discharge Height: 4.97m (16’ 4”)
Stockpile capacity: 183m³ (239yd³)
Powerpack
Belt Width: 1.2m (48”)
Working angle: 18° – 24° hydraulic assist
Discharge height: 3.6m (11’10”)
Stockpile capacity: 70m3 (91yd3 )
Tank Capacities
Hydraulic Tank: 450 litres / 99 UK gal / 119 US gal
Fuel Tank: 336 litres / 74 UK gal / 88 US gal
Undercarriage
Shoe Width: 500mm (20”)
Sprocket Centres: 4.2m (13’ 8”)
Speed: 0.8 km/h
Gradeability: 32.6°
Raking Angle: 9°
Toolbox
Mounted lockable toolbox
Tool Kit and flogging spanners
Grease gun
Manuals
TRANSPORT DIMENSIONS
Weight: 34.70 Tonnes
